SUN-5K-SG03LP1-EU
Deye SUN-5K-SG03LP1-EU - 5kW single-phase 48V hybrid solar inverter with dual MPPT and 120A battery charging.
SUN-8K-SG04LP3-EU
Deye SUN-8K-SG04LP3-EU - 8kW three-phase 48V hybrid inverter with 190A battery charging and 100% unbalanced output.
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details

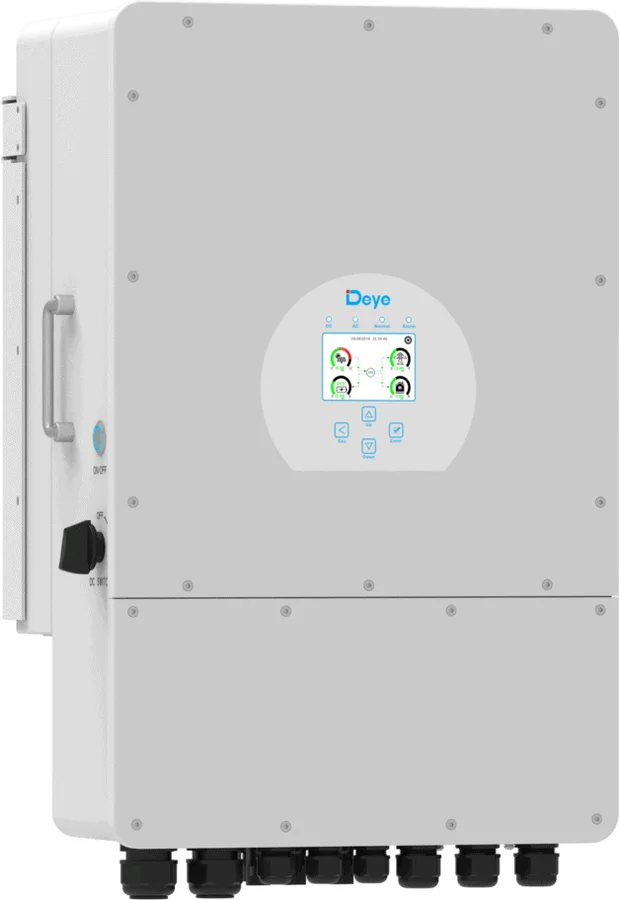

The SUN-8K-SG04LP3-EU brings three-phase output to the 48V low-voltage battery platform (supplied by SPS), which suits Lebanese workshops and buildings with three-phase motors but a modest battery budget. It handles 16kW of PV, charges at 190A, and tolerates a fully unbalanced load across the three phases.
Specifications
- Rated Output Power: 8000 W
- Max Apparent Power: 8800 VA
- Phase: Three phase, 220/380 V - 230/400 V
- Battery Voltage Range: 40-60 V
- Max Charging / Discharging Current: 190 A
- Max PV Access Power: 16000 W
- Max PV Input Power: 12000 W
- Max PV Input Voltage: 800 V
- MPPT Voltage Range: 200-650 V (2 MPPT)
- Protection Rating: IP65
- Dimensions (W x H x D): 422 x 658 x 254 mm
- Weight: 38 kg
