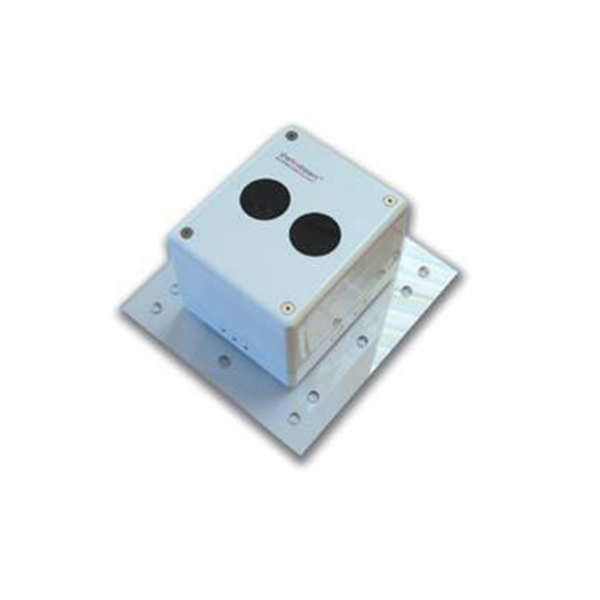

Conventional Beam Detector BEAMRAY RFX70
BEAMRAY RFX70, 7-70m motorised reflective beam detector 24VDC, comprising 1 x detector head, 1 x system controller and 1 x reflective prism, Auto-alig
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The Conventional Beam Detector BEAMRAY RFX70 is part of the Context Plus Conventional Beam Detectors range from Context Plus, supplied and supported by SPS. BEAMRAY RFX70, 7-70m motorised reflective beam detector 24VDC, comprising 1 x detector head, 1 x system controller and 1 x reflective prism, Auto-alignment, Building Movement Tracking. Operating range up to 70m. Extend to 140m with Long Range Kit (LR140) and to 160m with long Range Kit (LR160).
Specifications & features
- Conventional Optical Beam Detector with a Distance covering 70 metres which can be extended to 160 metres.
- Enhanced optics & latest advanced components.
- VdS Approved.
- Fully Compliant to EN54-12:2015.
- Incorporates linear stepper motors to ensure fast commissioning and routine maintenance.
- Class-leading speed performance: Auto-align time of 3 minutes and 02 seconds recorded at 40 metres.
- Long Distance Range Kit (LR140): plate of 3 extra reflectors to extend coverage from 70 to 140 metres.
- Long Distance Range Kit (LR160): plate of 8 extra reflectors to extend coverage from 140 to 160 metres.
