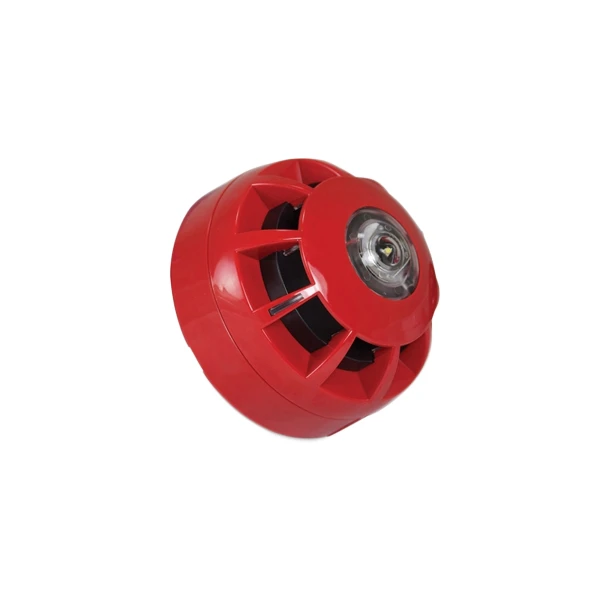

Addressable loop powered red Vantage Compact Beacon c/w shallow base- INTERTEK Approved
The Context Plus red Vantage loop powered Compact beacon c/w shallow base is third-party certified to EN54-23 (VADs) and 17 (Isolators) by Intertek. P
Addressable loop powered Open Area red Sounder with Isolator IP65- LPCB Approved
The Intelligent Addressable Open-Area Sounder of Context Plus has been designed for use in open areas, it is powered directly from the loop and need n
- Genuine equipment we support ourselves
- Technical guidance from our engineers
- Add several products, request one quote
Overview
Product Details
The Addressable loop powered Open Area red Sounder with Isolator IP65- LPCB Approved is part of the Analogue Addressable Audio Visual & Voice Alarms range from Context Plus, supplied and supported by SPS. The Intelligent Addressable Open-Area Sounder of Context Plus has been designed for use in open areas, it is powered directly from the loop and need no external power supply. Operates at 17–28V DC and is polarity sensitive. Nominal sound output of 100dB(A) and is achieved at a current consumption of 5mA. The Context Plus Addressable panel will be able to drive up to twenty 55000-001 sounders per loop on average. However, the maximum number of devices that may be connected to a particular loop should be determined by a loop loading calculation. Comes with a base which is fitted to the mounting surface and wired as a 'first fix'. Self-test fault monitoring Choice of tones Two volume settings 92dB(A) and 100dB(A) Synchronisation of tone Individual and group addressing Built in isolator Loop-powered IP65 rated Complies with EN54-3 LPCB Approved.
Specifications & features
- The Intelligent Addressable Open-Area Sounder of Context Plus has been designed for use in open areas, it is powered directly from the loop and need no external power supply.
- Operates at 17–28V DC and is polarity sensitive.
- Nominal sound output of 100dB(A) and is achieved at a current consumption of 5mA.
- The Context Plus Addressable panel will be able to drive up to twenty 55000-001 sounders per loop on average.
- However, the maximum number of devices that may be connected to a particular loop should be determined by a loop loading calculation.
- Comes with a base which is fitted to the mounting surface and wired as a 'first fix'.
- Self-test fault monitoring Choice of tones Two volume settings 92dB(A) and 100dB(A) Synchronisation of tone Individual and group addressing Built in isolator Loop-powered IP65 rated Complies with EN54-3 LPCB Approved
